一、 设备介绍
1. Bdtronic 设备
2. 应用场景
3. 设备描述
点胶机功能
多维度点胶：具备 3D 轴，能在三维空间精准点胶，适配复杂工件点胶需求 。
物料适配广：可处理单组份与多组份材料，混合比例灵活可调，还能持续计量、混合，应对从低粘度到膏状的反应性树脂 。
智能管控：有集成配方管理器，基于 Windows 控制，方便编程、存储工艺参数，简化操作与工艺复刻 。
使用场景
电子制造：给电路板（PCB）焊点涂覆保护胶、芯片封装点胶，保障电子元件稳定。像手机、电脑等电子产品生产，在芯片粘贴、电容电阻固定环节发挥作用 。
汽车工业：汽车零部件生产里，发动机密封、车灯组装点胶，提升部件密封性、可靠性，比如车灯防水密封、发动机缸体密封 。
精密机械：小型精密机械零件，如传感器、精密阀门组装时，精准点胶确保部件契合与性能，像医疗设备里的传感器组装，保证精度和稳定性 。
二、PLC通讯接配置
1、通讯方式
1.1 采用EL6695 | EtherCAT 端子模块，通信接口
1.2 EL6695介绍
EtherCAT 桥接端子模块 EL6695 可以实现属于不同主站的 EtherCAT 端子模块网段之间的实时数据交换。还支持通过 AoE、FoE、EoE、NPI 等进行异步通信。分布式时钟可以双向同步。EL6695 和 EL6692B 不同的是，它具有灵活的 CoE 配置和一个设备仿真选项，能够大大提高数据流量。和 EL6692 一样，TwinCAT 系统管理器中有一个方便的配置接口。次侧网段（RJ45）通过外部连接供电，主侧则通过 E-bus 供电。桥接端子模块也可用于将子 PC 系统集成为 EtherCAT 从站。

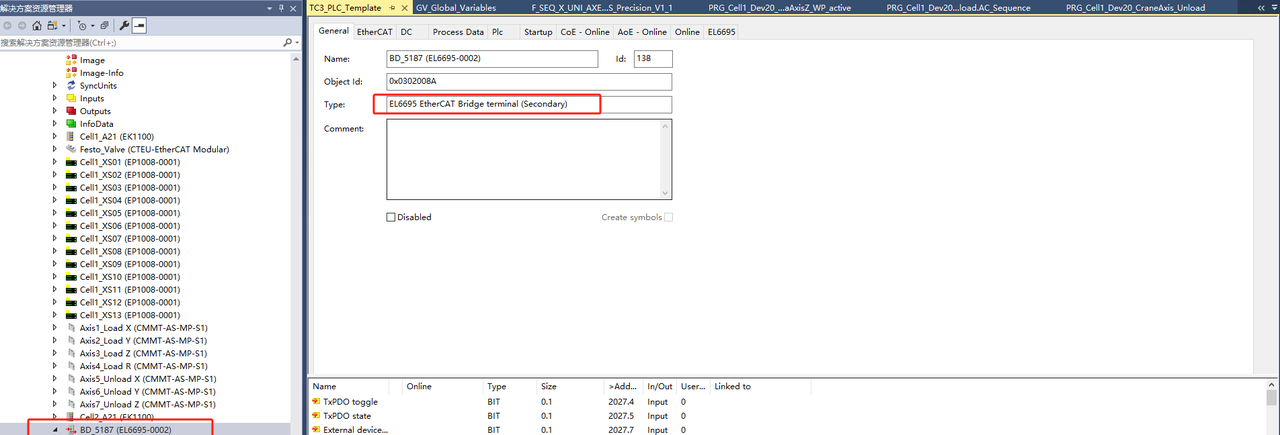

1.3 EL6695 EtherCAT 桥接端子模块配置
三、设备通讯接口数据类型定义

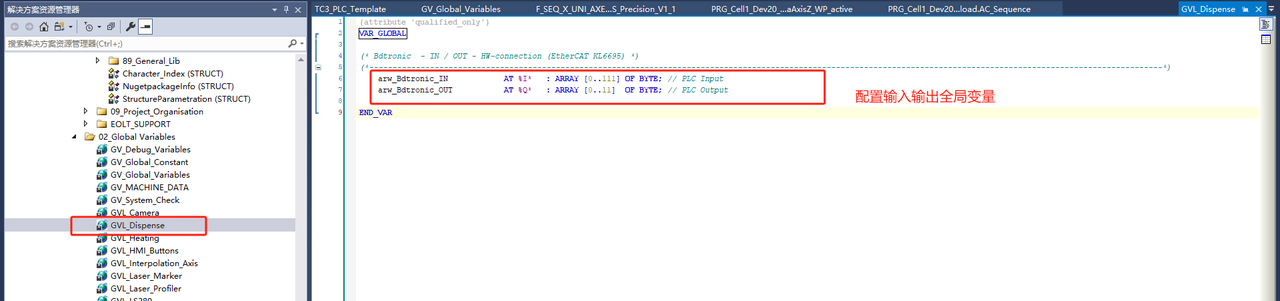

3.1 配置全局变量

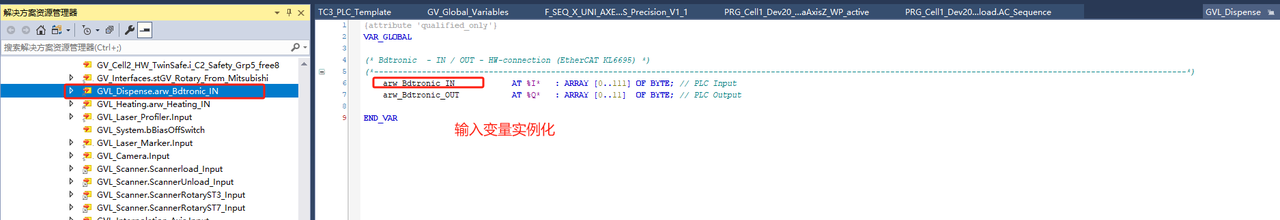

3.2 输入变量

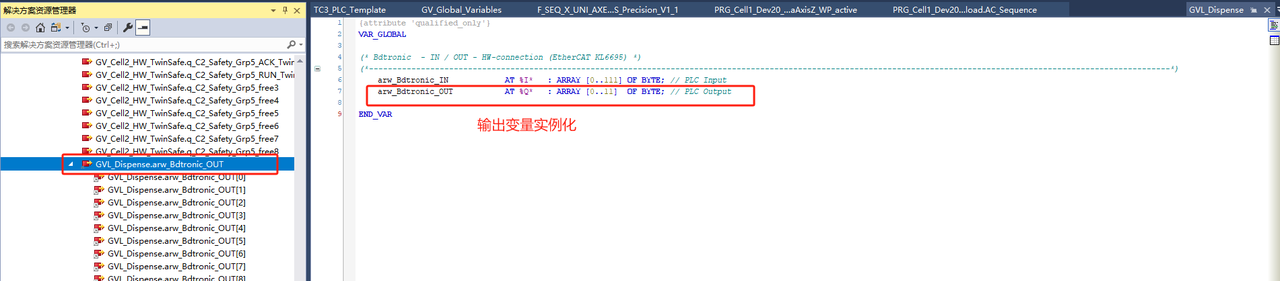

3.3 输出变量
3.4 实例化变量与IO关量
四、通讯功能块变量声明
1、建立关联IO的结构体

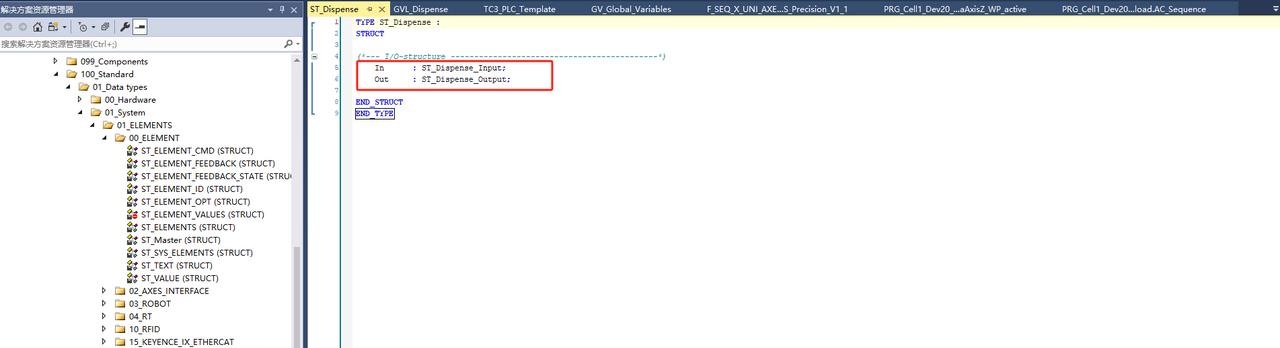

1、主结构体
2、in 结构体
TYPE ST_Dispense_Input : // ARRAY [0..11] OF BYTE
STRUCT
(*============================== INPUTS ==============================================*)
(* Byte0 -Byte65 := B1000/-D Dispensing System
Byte66 -Byte111 := PPS Feeder System
*)
// Dispensing System
i_bHandshake_Dispense : BOOL; (*Handshake Active Feedback = Usually 1*)
i_bLifeBit_Dispense : BOOL; (*Signal change for communication check = 1s Pulse*)
i_bRes_by0b2 : BOOL; (*Reserve byte 0 bit 2*)
i_bRes_by0b3 : BOOL; (*Reserve byte 0 bit 3*)
i_bRes_by0b4 : BOOL; (*Reserve byte 0 bit 4*)
i_bRes_by0b5 : BOOL; (*Reserve byte 0 bit 5*)
i_bRes_by0b6 : BOOL; (*Reserve byte 0 bit 6*)
i_bRes_by0b7 : BOOL; (*Reserve byte 0 bit 7*)
i_bMode_Dispense : BYTE; (*byte1(0 = Manual,2= Process Monitoring,3=Automatic ) *)
i_bUser_Level : BYTE; (*Current logged in user level*)
i_bRecipeNo : BYTE; (*Recipe number of loaded recipe (1-255)*)
i_bReady : BOOL; (*System is ready for production*)
i_bBusy : BOOL; (*System is busy*)
i_bSystemOK : BOOL; (*1 = Dispensing system OK, 0 = Error*)
i_bRes_by4b3 : BOOL; (*Reserve byte 4 bit 3*)
i_bRes_by4b4 : BOOL; (*Reserve byte 4 bit 4*)
i_bRes_by4b5 : BOOL; (*Reserve byte 4 bit 5*)
i_bRes_by4b6 : BOOL; (*Reserve byte 4 bit 6*)
i_bRes_by4b7 : BOOL; (*Reserve byte 4 bit 7*)
i_bRequest_Pos : BYTE;(*Actual position of dispensing system (1= Blind shot position,2 = Cleaning position)*) // 胶机涂胶请求位置号
i_wTimeYear_Dispense : WORD; (*Time Stamp Year*) //当前系统时间No Use
i_bTimeMonth_Dispense : BYTE; (*Time Stamp Month*) //当前系统时间No Use
i_bTimeDay_Dispense : BYTE; (*Time Stamp Day*) //当前系统时间No Use
i_bTimeHour_Dispense : BYTE; (*Time Stamp Hour*) //当前系统时间No Use
i_bTimeMinute_Dispense : BYTE; (*Time Stamp Minute*) //当前系统时间No Use
i_bTimeSecond_Dispense : BYTE; (*Time Stamp Second*) //当前系统时间No Use
i_bTime_Reserve_Dispense: BYTE; (*Time Stamp Reserve*) //当前系统时间No Use
i_bWeigh_Started : BOOL; (*Weighing shot started*)
i_bWeigh_Completed : BOOL; (*Weighing shot successfully completed*)
i_bRes_by14b2 : BOOL; (*Reserve byte 14 bit 2*)
i_bRes_by14b3 : BOOL; (*Reserve byte 14 bit 3*)
i_bRes_by14b4 : BOOL; (*Reserve byte 14 bit 4*)
i_bRes_by14b5 : BOOL; (*Reserve byte 14 bit 5*)
i_bRes_by14b6 : BOOL; (*Reserve byte 14 bit 6*)
i_bRes_by14b7 : BOOL; (*Reserve byte 14 bit 7*)
i_bPartCode_Trsfing : BOOL; (*15-Byte telegram was transferred*) // 条码传输中
i_bPartCode_Trsf_Completed: BOOL; (*Barcode transfer completed*) // 条码传输完成
i_bRes_by15b2 : BOOL; (*Reserve byte 15 bit 2*)
i_bRes_by15b3 : BOOL; (*Reserve byte 15 bit 3*)
i_bRes_by15b4 : BOOL; (*Reserve byte 15 bit 4*)
i_bRes_by15b5 : BOOL; (*Reserve byte 15 bit 5*)
i_bRes_by15b6 : BOOL; (*Reserve byte 15 bit 6*)
i_bRes_by15b7 : BOOL; (*Reserve byte 15 bit 7*)
irWeigh_LimitMin : REAL; (*Minimum value set in HMI for weighing shot [g] = Byte 16- Byte19 *)
irWeigh_LimitMax : REAL; (*Maximum value set in HMI for weighing shot [g] = Byte 20- Byte23 *)
irWeigh_LastValue : REAL; (*Weighing value of last weighing shot [g] = Byte 24- Byte27 *)
i_wChangeTime_Year : WORD; (*Time Stamp Year*) //切换Recipe时间
i_bChangeTime_Month : BYTE; (*Time Stamp Month*) //切换Recipe时间
i_bChangeTime_Day : BYTE; (*Time Stamp Day*) //切换Recipe时间
i_bChangeTime_Hour : BYTE; (*Time Stamp Hour*) //切换Recipe时间
i_bChangeTime_Minute : BYTE; (*Time Stamp Minute*) //切换Recipe时间
i_bChangeTime_Second : BYTE; (*Time Stamp Second*) //切换Recipe时间
i_bChangeTime_Reserve : BYTE; (*Time Stamp Reserve*) //切换Recipe时间
i_bPart_Barcode :ARRAY [0..7] OF BYTE; (* Scanned part barcode in 8-Byte telegrams (max. 1024 digits) *)
i_bProcess_OK : BOOL; (*Byte44 Process OK*) // 涂胶工艺OK
i_bProcess_NOK : BOOL; (*Byte44 Process NOK*) // 涂胶工艺NOK
i_bRes_by44b2 : BOOL; (*Reserve byte 44 bit 2*)
i_bRes_by44b3 : BOOL; (*Reserve byte 44 bit 3*)
i_bRes_by44b4 : BOOL; (*Reserve byte 44 bit 4*)
i_bRes_by44b5 : BOOL; (*Reserve byte 44 bit 5*)
i_bRes_by44b6 : BOOL; (*Reserve byte 44 bit 6*)
i_bRes_by44b7 : BOOL; (*Reserve byte 44 bit 7*)
i_bProcess_Data : BYTE; (* Process data of last dispensing process
1 = Maximum dispensing pressure component A [bar]
2 = Minimum dispensing pressure component A [bar]
3 = Maximum dispensing pressure component B [bar]
4 = Minimum dispensing pressure component B [bar]
5 = Number of rotations dispensing pump component A [°]
6 = Number of rotations dispensing pump component B [°]
7 = Average speed dispensing pump component A [rpm]
8 = Average speed dispensing pump component B [rpm]
9 = Average value of mixing head temperature [°C]
*)
irProcessData_Value : REAL; (*Value for selected process data = Byte 46- Byte49 *)
irProcessData_UpperValue : REAL; (*Setting value from HMI for upper limit selected process data = Byte 50- Byte53 *)
irProcessData_LowerValue : REAL; (*Setting value from HMI for lower limit selected process data = Byte 54- Byte57 *)
irPotLife_SetValue : REAL ; (*Set value from HMI [s] = Byte 58- Byte61 *)
irPotLife_ActValue : REAL; (*Current potlife [s] = Byte 62- Byte65 *)
// Feeder System
i_bHandshake_Material : BOOL; (*Handshake Active Feedback = Usually 1*)
i_bLifeBit_Material : BOOL; (*Signal change for communication check = 1s Pulse*)
i_bRes_by66b2 : BOOL; (*Reserve byte 66 bit 2*)
i_bRes_by66b3 : BOOL; (*Reserve byte 66 bit 3*)
i_bRes_by66b4 : BOOL; (*Reserve byte 66 bit 4*)
i_bRes_by66b5 : BOOL; (*Reserve byte 66 bit 5*)
i_bRes_by66b6 : BOOL; (*Reserve byte 66 bit 6*)
i_bRes_by66b7 : BOOL; (*Reserve byte 66 bit 7*)
i_bMode_Material : BYTE; (*byte67(0 = Manual,2= Process Monitoring,3=Automatic ) *)
i_bMaterial_OK : BOOL; (*Material OK*)
i_bRes_by68b1 : BOOL; (*Reserve byte 68 bit 1*)
i_bRes_by68b2 : BOOL; (*Reserve byte 68 bit 2*)
i_bRes_by68b3 : BOOL; (*Reserve byte 68 bit 3*)
i_bRes_by68b4 : BOOL; (*Reserve byte 68 bit 4*)
i_bRes_by68b5 : BOOL; (*Reserve byte 68 bit 5*)
i_bRes_by68b6 : BOOL; (*Reserve byte 68 bit 6*)
i_bRes_by68b7 : BOOL; (*Reserve byte 68 bit 7*)
i_bCurrent_Level : BYTE; (*Current logged in user level*)
i_wTimeYear_Material : WORD; (*Time Stamp Year*) //当前系统时间No Use
i_bTimeMonth_Material : BYTE; (*Time Stamp Month*) //当前系统时间No Use
i_bTimeDay_Material : BYTE; (*Time Stamp Day*) //当前系统时间No Use
i_bTimeHour_Material : BYTE; (*Time Stamp Hour*) //当前系统时间No Use
i_bTimeMinute_Material : BYTE; (*Time Stamp Minute*) //当前系统时间No Use
i_bTimeSecond_Material : BYTE; (*Time Stamp Second*) //当前系统时间No Use
i_bTimeReserve_Material : BYTE; (*Time Stamp Reserve*) //当前系统时间No Use
i_Barcode_Selection : BYTE; (*Barcode data which is requested via handshake
1 = Component ID component A
2 = Material number component A
3 = Batch number component A
4 = Part number component A
5 = Barcode 1
6 = Barcode 2
7 = Barcode 3
8 = Barcode (1024 digits) component A
9 = Component ID component B
10 = Material number component B
11 = Batch number component B
12 = Part number component B
13 = Barcode 1
14 = Barcode 2
15 = Barcode 3
16 = Barcode (1024 digits) component B*)
i_bBarCode_Trsfing : BOOL; (*69-Byte telegram was transferred*) // 条码传输中
i_bBarCode_Trsf_Completed: BOOL;(*Transfer completed*) // 条码传输完成
i_bRes_by79b2 : BOOL; (*Reserve byte 79 bit 2*)
i_bRes_by79b3 : BOOL; (*Reserve byte 79 bit 3*)
i_bRes_by79b4 : BOOL; (*Reserve byte 79 bit 4*)
i_bRes_by79b5 : BOOL; (*Reserve byte 79 bit 5*)
i_bRes_by79b6 : BOOL; (*Reserve byte 79 bit 6*)
i_bRes_by79b7 : BOOL; (*Reserve byte 79 bit 7*)
i_bBarcode :ARRAY [0..7] OF BYTE; (* Scanned part barcode in 8-Byte telegrams (max. 1024 digits) *)
irPailA_Filllevel : REAL; (*Fill level of the pail component A [%] = Byte 88- Byte91 *)
irPailB_Filllevel : REAL; (*Fill level of the pail component B [%] = Byte 92- Byte95 *)
irPumpA_DispensePressure : REAL; (*Supply pressure of the dispensing pump component A [bar] = Byte 96- Byte99 *)
irPumpB_DispensePressure : REAL; (*Supply pressure of the dispensing pump component B [bar] = Byte 100- Byte103 *)
irPumpA_OutletPressure : REAL; (*Pressure after the pump outlet component A [bar] = Byte 104- Byte107 *)
irPumpB_OutletPressure : REAL; (*Pressure after the pump outlet component B [bar] = Byte 108- Byte111 *)
END_STRUCT
END_TYPE3、out 结构体
TYPE ST_Dispense_Output :
STRUCT
(*============================== OUTPUTS =============================================*)
(* Byte0 -Byte7 := B1000/-D Dispensing System
Byte8 -Byte11 := PPS Feeder System
*)
// Dispensing System
q_bHandshake_Active : BOOL; (*Handshake Active = Usually 1*)
q_bLifeBit_Dispese : BOOL; (*Signal change for communication check = 1s Pulse*)
q_bRes_by0b2 : BOOL; (*Reserve byte 0 bit 2*)
q_bRes_by0b3 : BOOL; (*Reserve byte 0 bit 3*)
q_bRes_by0b4 : BOOL; (*Reserve byte 0 bit 4*)
q_bRes_by0b5 : BOOL; (*Reserve byte 0 bit 5*)
q_bRes_by0b6 : BOOL; (*Reserve byte 0 bit 6*)
q_bRes_by0b7 : BOOL; (*Reserve byte 0 bit 7*)
q_bMode_Dispense : BYTE; (*byte1(0 = Manual,2= Process Monitoring,3=Automatic ) *)
q_bRecipeNo : BYTE; (*Requested recipe number (1-255)*)
q_bStart : BOOL; (*Start of automatic process*) // 自动出胶命令
q_bFill : BOOL; (*Start of filling process*) // 自动填充胶管命令
q_bClean : BOOL; (*Start of cleaning process*) // 自动结束，停机命令 (胶机不在执行 Blindshot 功能)
q_bRes_by3b3 : BOOL; (*Reserve byte 3 bit 3*)
q_bRes_by3b4 : BOOL; (*Reserve byte 3 bit 4*)
q_bRes_by3b5 : BOOL; (*Reserve byte 3 bit 5*)
q_bRes_by3b6 : BOOL; (*Reserve byte 3 bit 6*)
q_bRes_by3b7 : BOOL; (*Reserve byte 3 bit 7*)
q_bActual_Pos : BYTE;(*Actual position of dispensing system (1= Blind shot position,2 = Cleaning position)*) // 涂胶头当前位置输出用于出胶确认
q_bPartID_Received : BOOL; (*8-Byte telegram received*) //No Use
q_bRes_by5b1 : BOOL; (*Reserve byte 5 bit 1*)
q_bRes_by5b2 : BOOL; (*Reserve byte 5 bit 2*)
q_bRes_by5b3 : BOOL; (*Reserve byte 5 bit 3*)
q_bRes_by5b4 : BOOL; (*Reserve byte 5 bit 4*)
q_bRes_by5b5 : BOOL; (*Reserve byte 5 bit 5*)
q_bRes_by5b6 : BOOL; (*Reserve byte 5 bit 6*)
q_bRes_by5b7 : BOOL; (*Reserve byte 5 bit 7*)
q_bPartID_OK : BYTE; (*1 = Part released,2 = Part not released*)
q_bProcess_Data : BYTE; (* Process data of last dispensing process
1 = Maximum dispensing pressure component A [bar]
2 = Minimum dispensing pressure component A [bar]
3 = Maximum dispensing pressure component B [bar]
4 = Minimum dispensing pressure component B [bar]
5 = Number of rotations dispensing pump component A [°]
6 = Number of rotations dispensing pump component B [°]
7 = Average speed dispensing pump component A [rpm]
8 = Average speed dispensing pump component B [rpm]
9 = Average value of mixing head temperature [°C] *)
// Feeder System
q_bMode_Material : BYTE; (*byte8(0 = Manual,2= Process Monitoring,3=Automatic ) *)
q_Barcode_Selection : BYTE; (*Barcode data which is requested via handshake
1 = Component ID component A
2 = Material number component A
3 = Batch number component A
4 = Part number component A
5 = Barcode 1
6 = Barcode 2
7 = Barcode 3
8 = Barcode (1024 digits) component A
9 = Component ID component B
10 = Material number component B
11 = Batch number component B
12 = Part number component B
13 = Barcode 1
14 = Barcode 2
15 = Barcode 3
16 = Barcode (1024 digits) component B*)
q_bBarcode_Received : BOOL; (*byte10:8-Byte telegram received*)
q_bRes_by10b1 : BOOL; (*Reserve byte 10 bit 1*)
q_bRes_by10b2 : BOOL; (*Reserve byte 10 bit 2*)
q_bRes_by10b3 : BOOL; (*Reserve byte 10 bit 3*)
q_bRes_by10b4 : BOOL; (*Reserve byte 10 bit 4*)
q_bRes_by10b5 : BOOL; (*Reserve byte 10 bit 5*)
q_bRes_by10b6 : BOOL; (*Reserve byte 10 bit 6*)
q_bRes_by10b7 : BOOL; (*Reserve byte 10 bit 7*)
q_bLifeBit_Material : BOOL; (*byte11:Signal change for communication check= 1s Pulse*)
q_bRes_by11b1 : BOOL; (*Reserve byte 11 bit 1*)
q_bRes_by11b2 : BOOL; (*Reserve byte 11 bit 2*)
q_bRes_by11b3 : BOOL; (*Reserve byte 11 bit 3*)
q_bRes_by11b4 : BOOL; (*Reserve byte 11 bit 4*)
q_bRes_by11b5 : BOOL; (*Reserve byte 11 bit 5*)
q_bRes_by11b6 : BOOL; (*Reserve byte 11 bit 6*)
q_bRes_by11b7 : BOOL; (*Reserve byte 11 bit 7*)
END_STRUCT
END_TYPE
2. 通讯功能块变量声明
FUNCTION_BLOCK FB_TYP_180_Bdtronic_Dispense_V1_0_1
(*---------------------------------------------*)
(*IN variables*)
(*---------------------------------------------*)
VAR_INPUT
iIn_idxElement : INT; (* !!!UNIQUE!!! Element identification*)
ist_HWIn : ARRAY [0..111] OF BYTE; (* EtherCAT-interface: Inputs *)
ib_Release_StartTask : BOOL:=0; (* Enable for task execution *)
ib_AxisAtStandbyPos : BOOL:=0; (* Enable for Clean OR Fill execution *)
ib_MutingAutoPurge : BOOL:=0; (* 屏蔽自动排胶 *) // 其他功能执行应该小于1M
ir_AutoPurge_Timer : REAL:=10.0; (*自动排胶时间设置 *)
ir_Weight_Timer : REAL:=10.0; (*称重涂胶时间设置 *)
ibActiveMcode : BOOL:=0; (*插补轴Ack Cmd *)
iuiActiveMcode : USINT:=0 ; (*插补轴命令M代码 *)
iuiActiveHcode : INT:=0 ; (*插补轴命令H代码 *)
ib_ByPass : BOOL:=0; (* 胶机屏蔽 *)
END_VAR
(*---------------------------------------------*)
(*IN/OUT variables*)
(*---------------------------------------------*)
VAR_IN_OUT
stINOUT_SYS_CELL :ST_SYS_CELL;
END_VAR
(*---------------------------------------------*)
(*OUT variables*)
(*---------------------------------------------*)
VAR_OUTPUT
ost_HWOut : ARRAY [0..11] OF BYTE; (* EtherCAT-interface: Outputs *)
ob_Ready : BOOL; // System is ready for production
ob_SystemOK : BOOL; // Dispensing system OKFALSE
ob_Busy : BOOL; // System is busy
ob_HandshakeMcode : BOOL; // 胶机交互插补轴
oPurge_End : BOOL; //完成自动排胶
orDispenseTimer : REAL; //涂胶时间
oLast_DispensingDatas : ARRAY [1..8] OF REAL;
END_VAR
(*---------------------------------------------*)
(*Local variables*)
(*---------------------------------------------*)
VAR
st_BdtronicIF :ST_Dispense; (* Bdtronic Dispense Interface I/0 *)
Dly_Ton : TON;
Heartbeat_Timeout : TON;
ForceCloseBD : TON; // 强制关闭胶机1s命令
StartDispense_Rtrig : R_TRIG;
AutoStartDispense_Rtrig : R_TRIG; // 自动排胶
Fill_Rtrig : R_TRIG; //填充新胶头
Clean_Rtrig : R_TRIG; //排空胶头 = 停止生产
tRtrig1 : R_TRIG;
tRtrig2 : R_TRIG;
tRtrig3 : R_TRIG;
tDelay : TON;
tWeight_Timer : TON;
Step :INT;
Start_Condition :BOOL;
Cmd_Type :USINT:=0; //1=Start Dispense,2=Fill，3=Clean,4= Auto Dispense
Count :USINT:=0; //Recipe Switch Count
tAutoDispense :BOOL; // 自动涂胶
tWeightDispense :BOOL; // 称重涂胶
tAutoPurge :BOOL; // 启动涂胶（自动排胶）
tWeigh1 : ARRAY [1..4] OF BYTE;
tWeigh2 : ARRAY [1..4] OF BYTE;
tWeigh3 : ARRAY [1..4] OF BYTE;
tProcess1 : ARRAY [1..4] OF BYTE;
tProcess2 : ARRAY [1..4] OF BYTE;
tProcess3 : ARRAY [1..4] OF BYTE;
tPotLife_Set : ARRAY [1..4] OF BYTE;
tPotLife_Current : ARRAY [1..4] OF BYTE;
tPailA_Level : ARRAY [1..4] OF BYTE;
tPailB_Level : ARRAY [1..4] OF BYTE;
tPumpA_Pressure : ARRAY [1..4] OF BYTE;
tPumpB_Pressure : ARRAY [1..4] OF BYTE;
tPumpAOutlet_Pressure : ARRAY [1..4] OF BYTE;
tPumpBOutlet_Pressure : ARRAY [1..4] OF BYTE;
DispenseTon : TON;
tDispenseTime : TIME:=T#12.0S;
Step_Data :INT;
IndexDatas :INT;
END_VAR
(*---------------------------------------------*)
(*Local temp variables*)
(*---------------------------------------------*)
VAR
stTemp_CELL : ST_SYS_CELL; (* Cell structure for element*)
stTemp_ELEMENT : ST_SYS_ELEMENTS; (* Data structure of element *)
tTemp_T_Ticker :TIME;(* actual CPU-Tick *)
bVar_REQ_HP :BOOL; // Start Clean (胶机不在执行盲打)
bVar_REQ_WP_1 : BOOL; // Start Fill
bVar_REQ_WP : BOOL; // start Dispense
wTemp_Diagnose : WORD;(*Error Messages
BIT.0 Robot: Collective Error
BIT.1 Robot: Task number invalid
BIT.2 Robot: Missing release for task start
BIT.3 Robot: Emergengy Stop from robot
BIT.4 Robot: Error - Bus State
BIT.5 Robot: Error - Program not started
BIT.6 Robot: Error - Stop by program
BIT.7 Robot: Error - Stopped by user
BIT.8 Robot: Reserve
BIT.9 Robot: Teach Mode active
BIT.10 Robot: res
BIT.11 Robot: res
BIT.12 Robot: No Connection to Robot TCP_IP-Server
BIT.13 Robot: No answer from robot for Read error
BIT.14 Robot: User Error by Robot
BIT.15 Robot: Reserve
*)
END_VAR
五、通讯功能块程序
st_BdtronicIF.Out.q_bHandshake_Active := stTemp_CELL.stINPUT.stFeedBack.bDOORS_CLOSED;
st_BdtronicIF.Out.q_bLifeBit_Dispese := bGV_Pulse_1Hz;
st_BdtronicIF.Out.q_bLifeBit_Material := bGV_Pulse_1Hz;
acstartCopyData();(*============================================================================================================================*)
ac_Mapping_Input();
(* --- INIT of element feedback --------------------------------------------------- *)
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP := FALSE;
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP_1 := FALSE;
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_HP := FALSE;
stTemp_ELEMENT.stFeedBack.stSTATE.bOUT_HP := FALSE;
stTemp_ELEMENT.stFeedBack.stSTATE.bOUT_WP := FALSE;
stTemp_ELEMENT.stFeedBack.stSTATE.bTO_WP := FALSE;
(* Status *)
ob_Ready :=st_BdtronicIF.In.i_bReady;
ob_SystemOK :=st_BdtronicIF.In.i_bSystemOK;
ob_Busy :=st_BdtronicIF.In.i_bBusy ;
stTemp_ELEMENT.arstValue[10].rNominal := BYTE_TO_REAL(st_BdtronicIF.In.i_bRecipeNo);
(* Request HP: Start of cleaning process *) // 结束任务,胶泵停止,自动触发时三轴必须待机位
bVar_REQ_HP := (stTemp_CELL.stMODE.bMANUAL AND stTemp_ELEMENT.stCMD.bMAN_HP )
OR
((stTemp_CELL.stMODE.bINIT_RUNNING OR stTemp_CELL.stMODE.bAUTO_RUNNING) AND stTemp_ELEMENT.stCMD.bAUTO_HP);
(* Request WP_1: Start of filling process *) // 更换新胶管后 填充空胶管 自动触发时三轴必须待机位
bVar_REQ_WP_1 := ((stTemp_CELL.stMODE.bMANUAL AND stTemp_ELEMENT.stCMD.bMAN_WP_1)
OR
((stTemp_CELL.stMODE.bINIT_RUNNING OR stTemp_CELL.stMODE.bAUTO_RUNNING) AND stTemp_ELEMENT.stCMD.bAUTO_WP_1));
(* Request WP: Start of automatic Process *) // 开启涂胶命令
bVar_REQ_WP := ((stTemp_CELL.stMODE.bMANUAL AND stTemp_ELEMENT.stCMD.bMAN_WP)
OR
((stTemp_CELL.stMODE.bINIT_RUNNING OR stTemp_CELL.stMODE.bAUTO_RUNNING) AND stTemp_ELEMENT.stCMD.bAUTO_WP))AND NOT bVar_REQ_WP_1;
(* Reset Edit mode if user forgot it *)
IF stTemp_CELL.stMODE.bAUTO
OR stTemp_CELL.stMODE.bAUTO_RUNNING
OR stTemp_CELL.stMODE.bINITIAL
OR stTemp_CELL.stMODE.bINIT_RUNNING THEN
stTemp_ELEMENT.stCMD.bEditMode := FALSE;
END_IF;
(* ================================================================================ *)
(* --- Reset of element commands -------------------------------------------------- *)
stTemp_ELEMENT.stCMD.bMAN_HP := FALSE;
stTemp_ELEMENT.stCMD.bMAN_WP := FALSE;
stTemp_ELEMENT.stCMD.bMAN_WP_1 := FALSE;
stTemp_ELEMENT.stCMD.bAUTO_WP := FALSE;
stTemp_ELEMENT.stCMD.bAUTO_WP_1 := FALSE;
stTemp_ELEMENT.stCMD.bAUTO_HP := FALSE;
(* ================================================================================ *)
(* === Diagnostic and monitoring ================================================== *)
IF stTemp_CELL.stMODE.bQUITT_ERRORS AND wTemp_Diagnose <> 0 (*OR stTemp_ELEMENT.stCMD.bSIMULATE*) THEN
wTemp_Diagnose := 0; (* Reset Error-word *)
Step :=0;
tAutoPurge :=FALSE;
tWeightDispense :=FALSE;
st_BdtronicIF.Out.q_bFill := FALSE;
st_BdtronicIF.Out.q_bClean := FALSE;
Dly_Ton.IN := FALSE;
stTemp_ELEMENT.stFeedBack.stSTATE.bERR_HP := FALSE;
stTemp_ELEMENT.stFeedBack.stSTATE.bERR_WP := FALSE;
stTemp_ELEMENT.stFeedBack.stSTATE.bERR_WP_1 := FALSE;
END_IF
(* === Execute Function ================================================== *)
Start_Condition:= NOT st_BdtronicIF.In.i_bBusy AND st_BdtronicIF.In.i_bSystemOK AND wTemp_Diagnose =0 AND Step =0;
Dly_Ton(IN:=Dly_Ton.IN , PT:=Dly_Ton.PT);
StartDispense_Rtrig (CLK:=bVar_REQ_WP); // Start Dispense
Fill_Rtrig (CLK:=bVar_REQ_WP_1); // Fill
Clean_Rtrig (CLK:=bVar_REQ_HP); // Clean
IF StartDispense_Rtrig.Q AND Start_Condition AND st_BdtronicIF.In.i_bReady THEN
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP:=FALSE ;
Cmd_Type := 1;
Step :=10;
ELSIF Fill_Rtrig.Q AND NOT st_BdtronicIF.In.i_bReady THEN
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP_1:=FALSE ;
Cmd_Type := 2;
Step :=10;
ELSIF Clean_Rtrig.Q THEN
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_HP:=FALSE ;
Cmd_Type := 3;
Step :=10;
ELSIF st_BdtronicIF.In.irPotLife_SetValue - st_BdtronicIF.In.irPotLife_ActValue >= st_BdtronicIF.In.irPotLife_SetValue - 60 AND st_BdtronicIF.In.irPotLife_SetValue > 0 AND Step =0
AND st_BdtronicIF.In.i_bReady AND NOT st_BdtronicIF.In.i_bBusy AND ib_AxisAtStandbyPos AND NOT ib_MutingAutoPurge THEN
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP:=FALSE ;
Cmd_Type := 4;
Step :=10;
END_IF
IF StartDispense_Rtrig.Q AND ( NOT Start_Condition OR NOT st_BdtronicIF.In.i_bReady ) THEN
wTemp_Diagnose.14 := TRUE;
Step :=0;
END_IF
CASE Step OF
10: // Reset Command
Dly_Ton.IN := FALSE;
st_BdtronicIF.Out.q_bFill := FALSE;
st_BdtronicIF.Out.q_bClean := FALSE;
st_BdtronicIF.Out.q_bActual_Pos :=0;
Count := 0;
tAutoPurge:=FALSE;
oPurge_End:=FALSE;
IF NOT Dly_Ton.Q AND NOT st_BdtronicIF.Out.q_bStart AND NOT st_BdtronicIF.Out.q_bClean AND Count = 0 AND NOT st_BdtronicIF.Out.q_bFill THEN
Step :=15;
END_IF
15:// Check Mode
IF st_BdtronicIF.In.i_bMode_Dispense = 3 AND st_BdtronicIF.In.i_bMode_Material = 3 THEN
Step :=30;
ELSE
Step :=20;
END_IF
20:
Dly_Ton.PT := T#5S;
Dly_Ton.IN := TRUE;
st_BdtronicIF.Out.q_bMode_Dispense := 3;
st_BdtronicIF.Out.q_bMode_Material := 3;
IF st_BdtronicIF.In.i_bMode_Dispense = 3 AND st_BdtronicIF.In.i_bMode_Material = 3 THEN
Step :=30;
ELSIF Dly_Ton.Q THEN
wTemp_Diagnose.0 := TRUE; // Switch Auto Mode Failure
Step :=999;
END_IF
30:// Auto Mode,Check Recipe Number
IF st_BdtronicIF.In.i_bRecipeNo = REAL_TO_BYTE (stTemp_ELEMENT.arstValue[1].rNominal) THEN
Step :=100;
ELSE
Step :=35;
END_IF
35:// Reset Timer
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q THEN
Step :=40;
END_IF
40:// Switch Recipe No
Dly_Ton.PT := T#5S;
Dly_Ton.IN := TRUE;
st_BdtronicIF.Out.q_bRecipeNo := REAL_TO_BYTE (stTemp_ELEMENT.arstValue[1].rNominal);
IF st_BdtronicIF.In.i_bRecipeNo = REAL_TO_BYTE (stTemp_ELEMENT.arstValue[1].rNominal) THEN
Step :=100;
ELSIF Dly_Ton.Q AND Count >= 3 THEN
wTemp_Diagnose.1 := TRUE; // Switch Recipe Number Failure
Step :=999;
ELSIF Dly_Ton.Q AND Count < 3 THEN
Step :=45;
END_IF
45:// Reset Timer
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q THEN
Count := Count + 1;
Step :=50;
END_IF
50:// Switch Mode To Manual
Dly_Ton.PT := T#5S;
Dly_Ton.IN := TRUE;
st_BdtronicIF.Out.q_bMode_Dispense := 0; // 只切 点胶头模式即可
IF st_BdtronicIF.In.i_bMode_Dispense = 0 THEN
Step :=60;
ELSIF Dly_Ton.Q AND st_BdtronicIF.In.i_bMode_Dispense <> 0 THEN
wTemp_Diagnose.2 := TRUE; // Switch Manual Mode Failure
Step :=999;
END_IF
60:// Reset Timer
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q THEN
Step :=20;
END_IF
100:// Select Command
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q AND Cmd_Type = 1 THEN // 正常涂胶
Step :=150;
ELSIF NOT Dly_Ton.Q AND Cmd_Type = 2 THEN
Step :=200;
ELSIF NOT Dly_Ton.Q AND Cmd_Type = 3 THEN
Step :=300;
ELSIF NOT Dly_Ton.Q AND Cmd_Type = 4 THEN
Step :=110;
END_IF
110:// 启动排胶
Dly_Ton.PT := REAL_TO_TIME(ir_AutoPurge_Timer * 1000.0);
Dly_Ton.IN := TRUE;
tAutoPurge:= TRUE;
IF st_BdtronicIF.In.i_bBusy THEN
oPurge_End:=TRUE;
END_IF
IF Dly_Ton.Q AND st_BdtronicIF.In.i_bBusy THEN
Step :=120;
ELSIF NOT ib_AxisAtStandbyPos THEN
Step :=120;
END_IF
120:// End
Dly_Ton.IN := FALSE;
tAutoPurge:=FALSE;
oPurge_End:=TRUE;
IF NOT Dly_Ton.Q AND NOT tAutoPurge THEN
Step :=0;
END_IF
150:// Entry Target Program
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q AND bVar_REQ_WP AND st_BdtronicIF.In.i_bReady THEN
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP:=bVar_REQ_WP AND st_BdtronicIF.Out.q_bStart ;
ELSIF NOT Dly_Ton.Q AND NOT bVar_REQ_WP THEN
Cmd_Type := 0;
Step :=0;
END_IF
200: // 检测 Fill 条件
Dly_Ton.PT := T#2S;
Dly_Ton.IN := TRUE;
st_BdtronicIF.Out.q_bFill := FALSE;
st_BdtronicIF.Out.q_bClean := FALSE;
IF NOT Dly_Ton.Q AND NOT st_BdtronicIF.In.i_bBusy AND st_BdtronicIF.In.i_bMode_Dispense = 3 AND st_BdtronicIF.In.i_bMode_Material = 3 THEN
Step :=205;
ELSIF Dly_Ton.Q THEN
wTemp_Diagnose.3 := TRUE; // Execute Fill Insufficient Condition
Step :=999;
END_IF
205:// Check Current Pos
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q AND ib_AxisAtStandbyPos THEN
Step :=210;
END_IF
210:// Check Current Pos
Dly_Ton.PT := T#2S;
Dly_Ton.IN := TRUE;
st_BdtronicIF.Out.q_bFill := TRUE;
IF NOT Dly_Ton.Q AND st_BdtronicIF.In.i_bRequest_Pos = 1 THEN
Step :=215;
ELSIF Dly_Ton.Q THEN
wTemp_Diagnose.4 := TRUE; // Trigger Fill No Responder
Step :=999;
END_IF
215:// Reset Timer
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q THEN
Step :=220;
END_IF
220:// Wait Fill Busy
Dly_Ton.PT := T#2S;
Dly_Ton.IN := TRUE;
st_BdtronicIF.Out.q_bActual_Pos :=1;
IF NOT Dly_Ton.Q AND st_BdtronicIF.In.i_bBusy THEN
Step :=225;
ELSIF Dly_Ton.Q THEN
wTemp_Diagnose.5 := TRUE; // Trigger Fill No Responder
Step :=999;
END_IF
225:// Reset Timer
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q THEN
Step :=230;
END_IF
230:// Wait Fill End
Dly_Ton.PT := T#100S;
Dly_Ton.IN := TRUE;
IF NOT Dly_Ton.Q AND NOT st_BdtronicIF.In.i_bBusy AND st_BdtronicIF.In.i_bReady THEN
Step :=235;
ELSIF Dly_Ton.Q THEN
wTemp_Diagnose.6 := TRUE; // Exeture Fill TimeOut
Step :=999;
END_IF
235:// Reset Timer
Dly_Ton.IN := FALSE;
st_BdtronicIF.Out.q_bFill := FALSE;
st_BdtronicIF.Out.q_bActual_Pos :=0;
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP_1:=TRUE ;
IF NOT Dly_Ton.Q AND stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP_1 AND NOT bVar_REQ_WP_1 THEN
Step :=0;
END_IF
300: // 检测 Clean 条件
Dly_Ton.PT := T#2S;
Dly_Ton.IN := TRUE;
st_BdtronicIF.Out.q_bFill := FALSE;
st_BdtronicIF.Out.q_bClean := FALSE;
IF NOT Dly_Ton.Q AND NOT st_BdtronicIF.In.i_bBusy AND st_BdtronicIF.In.i_bMode_Dispense = 3 AND st_BdtronicIF.In.i_bMode_Material = 3 THEN
Step :=305;
ELSIF Dly_Ton.Q THEN
wTemp_Diagnose.7 := TRUE; // Execute Clean Insufficient Condition
Step :=999;
END_IF
305:// Check Current Pos
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q AND ib_AxisAtStandbyPos THEN
Step :=310;
END_IF
310:// Check Current Pos
Dly_Ton.PT := T#2S;
Dly_Ton.IN := TRUE;
st_BdtronicIF.Out.q_bClean := TRUE;
IF NOT Dly_Ton.Q AND st_BdtronicIF.In.i_bRequest_Pos = 2 THEN
Step :=315;
ELSIF Dly_Ton.Q THEN
wTemp_Diagnose.8 := TRUE; // Trigger Clean No Responder
Step :=999;
END_IF
315:// Reset Timer
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q THEN
Step :=320;
END_IF
320:// Wait Clean Busy
Dly_Ton.PT := T#2S;
Dly_Ton.IN := TRUE;
st_BdtronicIF.Out.q_bActual_Pos :=2;
IF NOT Dly_Ton.Q AND st_BdtronicIF.In.i_bBusy THEN
Step :=325;
ELSIF Dly_Ton.Q THEN
wTemp_Diagnose.9 := TRUE; // Trigger Clean No Responder
Step :=999;
END_IF
325:// Reset Timer
Dly_Ton.IN := FALSE;
IF NOT Dly_Ton.Q THEN
Step :=330;
END_IF
330:// Wait Clean End
Dly_Ton.PT := T#3S;
Dly_Ton.IN := TRUE;
IF NOT Dly_Ton.Q AND NOT st_BdtronicIF.In.i_bBusy AND NOT st_BdtronicIF.In.i_bReady THEN
Step :=335;
ELSIF Dly_Ton.Q THEN
wTemp_Diagnose.10 := TRUE; // Exeture Clean TimeOut
Step :=999;
END_IF
335:// Reset Timer
Dly_Ton.IN := FALSE;
st_BdtronicIF.Out.q_bClean := FALSE;
st_BdtronicIF.Out.q_bActual_Pos :=0;
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_HP:=TRUE ;
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP_1:=FALSE ;
IF NOT Dly_Ton.Q AND stTemp_ELEMENT.stFeedBack.stSTATE.bIN_HP AND NOT bVar_REQ_HP THEN
Step :=0;
END_IF
999:
Dly_Ton.IN := FALSE;
st_BdtronicIF.Out.q_bFill := FALSE;
st_BdtronicIF.Out.q_bClean := FALSE;
tAutoPurge:=FALSE;
oPurge_End:=FALSE;
IF NOT Dly_Ton.Q AND NOT st_BdtronicIF.Out.q_bStart AND NOT st_BdtronicIF.Out.q_bClean THEN
Step :=0;
END_IF
END_CASE
//出胶
st_BdtronicIF.Out.q_bStart:=((Step = 150 AND bVar_REQ_WP) OR tAutoPurge OR (tAutoDispense AND NOT GVL_Interpolation_Axis.Input[1].4) OR tWeightDispense ) AND ib_Release_StartTask ;
IF NOT ib_Release_StartTask OR DispenseTon.Q THEN
tAutoPurge :=FALSE;
tAutoDispense :=FALSE;
tWeightDispense:=FALSE;
END_IF
IF st_BdtronicIF.In.i_bMode_Dispense = 3 AND NOT st_BdtronicIF.In.i_bBusy AND NOT st_BdtronicIF.In.i_bReady AND Step =0 THEN
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP_1:=FALSE ;
END_IF
ForceCloseBD(IN:=iuiActiveHcode = -10 , PT:=T#1S);
// Handshake Interpolate Axis
IF iuiActiveMcode =12 AND st_BdtronicIF.In.i_bReady THEN
tWeightDispense:=FALSE;
oPurge_End:=FALSE;
tAutoDispense :=TRUE;
ELSIF iuiActiveMcode =13 OR iuiActiveHcode =10 THEN
tAutoDispense :=FALSE;
ELSIF iuiActiveHcode = -10 AND st_BdtronicIF.In.i_bBusy AND tAutoDispense AND NOT ForceCloseBD.Q THEN // 处理胶机未能正常关闭的可能
tAutoDispense :=FALSE;
END_IF
tRtrig1 (CLK:=tAutoDispense AND st_BdtronicIF.In.i_bBusy );
tRtrig2 (CLK:=tWeight_Timer.Q);
tDelay (IN:= (ob_HandshakeMcode AND NOT ibActiveMcode) , PT:=T#100MS);
tWeight_Timer(IN:=tWeightDispense, PT:= REAL_TO_TIME(ir_Weight_Timer * 1000.0) ); // 默认首件完成时间
IF iuiActiveMcode =11 THEN
tWeightDispense:=TRUE;
ELSE
tWeightDispense:=FALSE;
END_IF
IF iuiActiveMcode =11 AND tRtrig2.Q THEN //称重涂胶完成
tAutoDispense :=FALSE;
tAutoPurge :=FALSE;
ob_HandshakeMcode:=TRUE;
END_IF
IF tRtrig1.Q THEN
ob_HandshakeMcode:=TRUE; // 涂胶轨迹出胶交互
ELSIF tDelay.Q THEN
ob_HandshakeMcode := FALSE ;
END_IF
(* States *)
stTemp_ELEMENT.stFeedBack.stSTATE.bERR := wTemp_Diagnose <>0;
// Alarm Bits
IF NOT ib_ByPass THEN
wTemp_Diagnose.11 := NOT st_BdtronicIF.In.i_bSystemOK ;
wTemp_Diagnose.12 := NOT st_BdtronicIF.In.i_bMaterial_OK AND st_BdtronicIF.In.i_bMode_Material = 3;
wTemp_Diagnose.13 := BYTE_TO_USINT ( st_BdtronicIF.In.i_bMode_Dispense) = 19; // Estop
Heartbeat_Timeout(IN:=st_BdtronicIF.Out.q_bHandshake_Active AND (NOT st_BdtronicIF.In.i_bLifeBit_Dispense OR NOT st_BdtronicIF.In.i_bLifeBit_Material)AND NOT stTemp_CELL.stMODE.bQUITT_ERRORS , PT:=T#5S);
IF Heartbeat_Timeout.Q THEN
wTemp_Diagnose.15 := TRUE; // Commumication Failure
END_IF
END_IF
(*============================================================================================================================*)
(* ...finally write back FB internal structures *)
ac_Mapping_Output();
acFinalCopyData();
IF DispenseTon.IN THEN
tDispenseTime := DispenseTon.ET;
END_IF
orDispenseTimer:=TIME_TO_REAL(tDispenseTime) /1000.0;
DispenseTon(IN:=tAutoDispense , PT:=T#2M , Q=> , ET=> );
(*
//抓取涂胶数据
tRtrig3(CLK:=NOT tAutoDispense);
IF tRtrig3.Q THEN
IndexDatas:=1;
WHILE IndexDatas <= 8 DO
st_BdtronicIF.Out.q_bProcess_Data := INT_TO_BYTE (IndexDatas);
IF st_BdtronicIF.In.i_bProcess_Data = IndexDatas THEN
oLast_DispensingDatas[Index] := st_BdtronicIF.In.irProcessData_Value;
IndexDatas:=+1;
END_IF
END_WHILE
END_IF
*)
tRtrig3(CLK:=NOT tAutoDispense);
IF tRtrig3.Q THEN
IndexDatas:=1;
Step_Data :=10;
END_IF
CASE Step_Data OF
10:
st_BdtronicIF.Out.q_bProcess_Data := INT_TO_BYTE (IndexDatas);
IF st_BdtronicIF.In.i_bProcess_Data = IndexDatas THEN
IF INT_TO_BYTE (IndexDatas) = 5 OR INT_TO_BYTE (IndexDatas) = 6 THEN
oLast_DispensingDatas[IndexDatas]:= st_BdtronicIF.In.irProcessData_Value /60.0;
ELSE
oLast_DispensingDatas[IndexDatas]:= st_BdtronicIF.In.irProcessData_Value ;
END_IF
Step_Data:=15;
END_IF
15:
IndexDatas:=IndexDatas + 1;
Step_Data:=20;
20:
IF IndexDatas > 8 THEN
Step_Data:=0;
ELSE
Step_Data:=10;
END_IF
END_CASE 六、通讯功能块程序分析
6.1、整体功能定位
这段代码是 PLC（可编程逻辑控制器）程序，用于控制 BDtronic 点胶机的自动化流程，核心实现：
点胶任务调度（正常点胶、填充、清洗等）
设备状态监控（就绪、繁忙、故障诊断）
模式切换（手动 / 自动、配方切换）
通信与交互（和轴系统、上位机的握手信号）
6.2、核心流程与关键逻辑
1. 信号初始化与映射
st_BdtronicIF.Out.q_bHandshake_Active := stTemp_CELL.stINPUT.stFeedBack.bDOORS_CLOSED;
st_BdtronicIF.Out.q_bLifeBit_Dispese := bGV_Pulse_1Hz;
st_BdtronicIF.Out.q_bLifeBit_Material := bGV_Pulse_1Hz;
acstartCopyData();(*============================================================================================================================*)
ac_Mapping_Input();
功能：初始化设备交互信号（如门关闭握手、心跳信号），并通过 ac_Mapping_Input() 映射外部输入到内部变量，确保程序能读取传感器、按钮等信号。
关键细节：bGV_Pulse_1Hz 是 1Hz 脉冲，用于模拟 “设备存活” 心跳，告诉系统 “点胶机还在正常运行”。
2. 状态与命令重置
(* --- INIT of element feedback --------------------------------------------------- *)
stTemp_ELEMENT.stFeedBack.stSTATE.bIN_WP := FALSE;
(* ... 其他状态重置 ... *)
(* --- Reset of element commands -------------------------------------------------- *)
stTemp_ELEMENT.stCMD.bMAN_HP := FALSE;
(* ... 其他命令重置 ... *)
功能：每次循环 / 任务前，清空上一轮的状态标记和指令，避免残留信号干扰新任务，保证逻辑纯净。
3. 任务触发条件（核心调度逻辑）
(* Request HP: Start of cleaning process *) // 清洗流程触发
bVar_REQ_HP := (stTemp_CELL.stMODE.bMANUAL AND stTemp_ELEMENT.stCMD.bMAN_HP )
OR
((stTemp_CELL.stMODE.bINIT_RUNNING OR stTemp_CELL.stMODE.bAUTO_RUNNING) AND stTemp_ELEMENT.stCMD.bAUTO_HP);
(* Request WP_1: Start of filling process *) // 填充流程触发
bVar_REQ_WP_1 := ((stTemp_CELL.stMODE.bMANUAL AND stTemp_ELEMENT.stCMD.bMAN_WP_1)
OR
((stTemp_CELL.stMODE.bINIT_RUNNING OR stTemp_CELL.stMODE.bAUTO_RUNNING) AND stTemp_ELEMENT.stCMD.bAUTO_WP_1));
(* Request WP: Start of automatic Process *) // 正常点胶流程触发
bVar_REQ_WP := ((stTemp_CELL.stMODE.bMANUAL AND stTemp_ELEMENT.stCMD.bMAN_WP)
OR
((stTemp_CELL.stMODE.bINIT_RUNNING OR stTemp_CELL.stMODE.bAUTO_RUNNING) AND stTemp_ELEMENT.stCMD.bAUTO_WP))AND NOT bVar_REQ_WP_1;
功能：根据设备当前模式（手动 / 自动 / 初始化），判断是否触发 清洗（HP）、填充（WP_1）、正常点胶（WP） 任务。
逻辑拆解：
手动模式下，操作员按对应按钮（bMAN_HP/bMAN_WP 等）触发；
自动 / 初始化模式下，程序自动触发（bAUTO_HP/bAUTO_WP 等）；
bVar_REQ_WP 加了 NOT bVar_REQ_WP_1，确保 “正常点胶” 和 “填充” 不会同时执行。
4. 模式安全逻辑（防止误操作）
(* Reset Edit mode if user forgot it *)
IF stTemp_CELL.stMODE.bAUTO
OR stTemp_CELL.stMODE.bAUTO_RUNNING
OR stTemp_CELL.stMODE.bINITIAL
OR stTemp_CELL.stMODE.bINIT_RUNNING THEN
stTemp_ELEMENT.stCMD.bEditMode := FALSE;
END_IF;
功能：自动运行时，强制关闭 “编辑模式”，避免操作员误改参数导致设备异常，保障自动化流程安全。
5. 故障诊断与复位
IF stTemp_CELL.stMODE.bQUITT_ERRORS AND wTemp_Diagnose <> 0 (*OR stTemp_ELEMENT.stCMD.bSIMULATE*) THEN
wTemp_Diagnose := 0; (* Reset Error-word *)
Step :=0;
tAutoPurge :=FALSE;
tWeightDispense :=FALSE;
st_BdtronicIF.Out.q_bFill := FALSE;
st_BdtronicIF.Out.q_bClean := FALSE;
Dly_Ton.IN := FALSE;
stTemp_ELEMENT.stFeedBack.stSTATE.bERR_HP := FALSE;
(* ... 其他故障复位 ... *)
END_IF
功能：当操作员触发 “故障复位（bQUITT_ERRORS）” 时，清空故障码、重置任务步骤、关闭正在执行的动作（填充 / 清洗等），让设备回到初始状态，方便重启流程。
6. 任务执行（CASE 状态机核心）
CASE Step OF
10: // Reset Command
Dly_Ton.IN := FALSE;
(* ... 清空输出信号、计数器 ... *)
IF NOT Dly_Ton.Q AND NOT st_BdtronicIF.Out.q_bStart AND NOT st_BdtronicIF.Out.q_bClean AND Count = 0 AND NOT st_BdtronicIF.Out.q_bFill THEN
Step :=15;
END_IF
15:// Check Mode
IF st_BdtronicIF.In.i_bMode_Dispense = 3 AND st_BdtronicIF.In.i_bMode_Material = 3 THEN
Step :=30;
ELSE
Step :=20;
END_IF
(* ... 其他步骤 ... *)
999:
Dly_Ton.IN := FALSE;
(* ... 清空输出、复位状态 ... *)
IF NOT Dly_Ton.Q AND NOT st_BdtronicIF.Out.q_bStart AND NOT st_BdtronicIF.Out.q_bClean THEN
Step :=0;
END_IF
END_CASE
功能：用 CASE Step OF 实现 状态机，把复杂任务拆成 Step=10（命令重置）、Step=15（模式检查）等小阶段，逐步执行点胶、填充、清洗流程。
关键设计：每个 Step 完成后，通过条件判断进入下一阶段；遇到故障直接跳转到 Step=999 复位，逻辑清晰且易维护。
7. 出胶控制与交互
st_BdtronicIF.Out.q_bStart:=((Step = 150 AND bVar_REQ_WP) OR tAutoPurge OR (tAutoDispense AND NOT GVL_Interpolation_Axis.Input[1].4) OR tWeightDispense ) AND ib_Release_StartTask ;
IF NOT ib_Release_StartTask OR DispenseTon.Q THEN
tAutoPurge :=FALSE;
tAutoDispense :=FALSE;
tWeightDispense:=FALSE;
END_IF
功能：综合 “任务阶段（Step=150）、自动排胶（tAutoPurge）、轨迹点胶（tAutoDispense）” 等条件，控制 q_bStart 信号触发实际出胶动作；出胶后及时关闭触发标记，避免重复执行。
8. 数据抓取与记录（可选功能）
tRtrig3(CLK:=NOT tAutoDispense);
IF tRtrig3.Q THEN
IndexDatas:=1;
Step_Data :=10;
END_IF
CASE Step_Data OF
10:
st_BdtronicIF.Out.q_bProcess_Data := INT_TO_BYTE (IndexDatas);
IF st_BdtronicIF.In.i_bProcess_Data = IndexDatas THEN
(* ... 读取并转换工艺数据（如时间、流量） ... *)
Step_Data:=15;
END_IF
(* ... 其他数据读取步骤 ... *)
END_CASE
功能：任务结束后（tAutoDispense 关闭时触发），通过 CASE Step_Data 按序读取点胶机的工艺数据（如出胶时间、流量），存入数组 oLast_DispensingDatas，用于生产追溯或质量分析。
6.3、总结
这个胶机通讯功能块本质是 “状态机 + 条件判断” 的组合，通过 Step 拆分任务流程，用 CASE 逐步执行点胶、填充、清洗等动作，同时嵌入 故障诊断、模式安全、数据记录 逻辑，确保设备稳定、可追溯。
简单说，它就像点胶机的 “大脑”：
先看 “当前要干啥（任务触发条件）”→
再分步骤执行（状态机 Step）→
遇到问题就复位（故障处理）→
最后记录干了啥（数据抓取）。
如果想深入调试，建议重点已关注 Step 跳转逻辑、bVar_REQ_* 触发条件，以及故障码 wTemp_Diagnose 的赋值位置，就能快速定位流程卡点或异常～
七、通讯功能块描述
这个功能块是 BDtronic 点胶机控制系统的核心逻辑单元，其作用是管理点胶机的全流程自动化操作，包括任务调度、状态监控、模式切换和故障处理。以下是功能块的详细说明：
7.1 功能块概述
名称：BDtronic 点胶机控制功能块
输入：设备状态信号、用户命令、工艺参数
输出：点胶机控制信号、状态反馈、故障报警
核心逻辑：基于状态机的任务调度与执行
7.2 主要功能
1. 任务管理
点胶操作：控制正常点胶流程（WP），支持手动和自动模式
填充操作：新胶管填充流程（WP_1），排除管路空气
清洗操作：胶头清洗流程（HP），防止胶水固化堵塞
自动排胶：根据使用时间自动触发排胶，避免材料过期
2. 状态监控与反馈
设备状态：实时监测就绪（Ready）、系统正常（SystemOK）、繁忙（Busy）等状态
工艺参数：读取并记录点胶时间、流量、压力等关键数据
安全检查：监控门状态、轴位置等安全条件，确保操作合规
3. 模式切换与配方管理
工作模式：支持手动、自动、初始化等模式切换
配方管理：自动加载并验证点胶配方，确保工艺一致性
安全机制：自动模式下强制关闭编辑功能，防止误操作
4. 故障诊断与处理
实时诊断：监测系统错误、材料异常、通信故障等 16 种故障类型
自动恢复：支持故障复位功能，快速恢复生产
超时保护：关键操作设置超时限制，避免长时间阻塞
7.3 工作流程
初始化：重置状态、映射输入输出信号
任务触发：根据模式和用户命令，选择执行点胶、填充或清洗任务
状态机执行：按步骤（Step）执行任务，包括模式检查、配方验证、动作执行
数据采集：任务完成后记录关键工艺数据
故障处理：检测并处理异常情况，记录故障代码
7.4 应用场景
电子制造：PCB 板涂覆、芯片封装
汽车零部件：传感器封装、精密阀门点胶
医疗设备：精密部件组装、密封点胶
其他精密制造：需要高精度流体控制的场景
7.5 关键技术特性
状态机设计：将复杂流程拆解为清晰的步骤，易于维护和扩展
双看门狗机制：通过心跳信号（LifeBit）和超时保护确保通信可靠性
模块化结构：核心逻辑与输入输出映射分离，便于适配不同硬件
安全优先：多重安全检查和互锁机制，防止误操作
这个功能块通过集成化的设计，实现了 BDtronic 点胶机从任务接收到执行的全流程自动化控制，是工业自动化生产线中的关键组件。
八、附录
8.1 输入变量映射程序
st_BdtronicIF.In.i_bHandshake_Dispense := ist_HWIn[0].0;
st_BdtronicIF.In.i_bLifeBit_Dispense := ist_HWIn[0].1;
st_BdtronicIF.In.i_bRes_by0b2 := ist_HWIn[0].2;
st_BdtronicIF.In.i_bRes_by0b3 := ist_HWIn[0].3;
st_BdtronicIF.In.i_bRes_by0b4 := ist_HWIn[0].4;
st_BdtronicIF.In.i_bRes_by0b5 := ist_HWIn[0].5;
st_BdtronicIF.In.i_bRes_by0b6 := ist_HWIn[0].6;
st_BdtronicIF.In.i_bRes_by0b7 := ist_HWIn[0].7;
st_BdtronicIF.In.i_bMode_Dispense := ist_HWIn[1];
st_BdtronicIF.In.i_bUser_Level := ist_HWIn[2];
st_BdtronicIF.In.i_bRecipeNo := ist_HWIn[3];
st_BdtronicIF.In.i_bReady := ist_HWIn[4].0;
st_BdtronicIF.In.i_bBusy := ist_HWIn[4].1;
st_BdtronicIF.In.i_bSystemOK := ist_HWIn[4].2;
st_BdtronicIF.In.i_bRes_by4b3 := ist_HWIn[4].3;
st_BdtronicIF.In.i_bRes_by4b4 := ist_HWIn[4].4;
st_BdtronicIF.In.i_bRes_by4b5 := ist_HWIn[4].5;
st_BdtronicIF.In.i_bRes_by4b6 := ist_HWIn[4].6;
st_BdtronicIF.In.i_bRes_by4b7 := ist_HWIn[4].7;
st_BdtronicIF.In.i_bRequest_Pos := ist_HWIn[5];
st_BdtronicIF.In.i_wTimeYear_Dispense := MEM.PackBytesToWord(byHighByte:=ist_HWIn[7] , byLowByte:=ist_HWIn[6] );
st_BdtronicIF.In.i_bTimeMonth_Dispense := ist_HWIn[8];
st_BdtronicIF.In.i_bTimeDay_Dispense := ist_HWIn[9];
st_BdtronicIF.In.i_bTimeHour_Dispense := ist_HWIn[10];
st_BdtronicIF.In.i_bTimeMinute_Dispense := ist_HWIn[11];
st_BdtronicIF.In.i_bTimeSecond_Dispense := ist_HWIn[12];
st_BdtronicIF.In.i_bTime_Reserve_Dispense := ist_HWIn[13];
st_BdtronicIF.In.i_bWeigh_Started := ist_HWIn[14].0;
st_BdtronicIF.In.i_bWeigh_Completed := ist_HWIn[14].1;
st_BdtronicIF.In.i_bRes_by14b2 := ist_HWIn[14].2;
st_BdtronicIF.In.i_bRes_by14b3 := ist_HWIn[14].3;
st_BdtronicIF.In.i_bRes_by14b4 := ist_HWIn[14].4;
st_BdtronicIF.In.i_bRes_by14b5 := ist_HWIn[14].5;
st_BdtronicIF.In.i_bRes_by14b6 := ist_HWIn[14].6;
st_BdtronicIF.In.i_bRes_by14b7 := ist_HWIn[14].7;
st_BdtronicIF.In.i_bPartCode_Trsfing := ist_HWIn[15].0;
st_BdtronicIF.In.i_bPartCode_Trsf_Completed:= ist_HWIn[15].1;
st_BdtronicIF.In.i_bRes_by15b2 := ist_HWIn[15].2;
st_BdtronicIF.In.i_bRes_by15b3 := ist_HWIn[15].3;
st_BdtronicIF.In.i_bRes_by15b4 := ist_HWIn[15].4;
st_BdtronicIF.In.i_bRes_by15b5 := ist_HWIn[15].5;
st_BdtronicIF.In.i_bRes_by15b6 := ist_HWIn[15].6;
st_BdtronicIF.In.i_bRes_by15b7 := ist_HWIn[15].7;
tWeigh1[1]:= ist_HWIn[16];
tWeigh1[2]:= ist_HWIn[17];
tWeigh1[3]:= ist_HWIn[18];
tWeigh1[4]:= ist_HWIn[19];
tWeigh2[1]:= ist_HWIn[20];
tWeigh2[2]:= ist_HWIn[21];
tWeigh2[3]:= ist_HWIn[22];
tWeigh2[4]:= ist_HWIn[23];
tWeigh3[1]:= ist_HWIn[24];
tWeigh3[2]:= ist_HWIn[25];
tWeigh3[3]:= ist_HWIn[26];
tWeigh3[4]:= ist_HWIn[27];
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irWeigh_LimitMin),srcAddr:=ADR(tWeigh1[1]),n:= SIZEOF(st_BdtronicIF.In.irWeigh_LimitMin)) ;
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irWeigh_LimitMax),srcAddr:=ADR(tWeigh2[1]),n:= SIZEOF(st_BdtronicIF.In.irWeigh_LimitMax)) ;
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irWeigh_LastValue),srcAddr:=ADR(tWeigh3[1]),n:= SIZEOF(st_BdtronicIF.In.irWeigh_LastValue)) ;
st_BdtronicIF.In.i_wChangeTime_Year := MEM.PackBytesToWord(byHighByte:=ist_HWIn[29] , byLowByte:=ist_HWIn[28] );
st_BdtronicIF.In.i_bChangeTime_Month := ist_HWIn[30];
st_BdtronicIF.In.i_bChangeTime_Day := ist_HWIn[31];
st_BdtronicIF.In.i_bChangeTime_Hour := ist_HWIn[32];
st_BdtronicIF.In.i_bChangeTime_Minute := ist_HWIn[33];
st_BdtronicIF.In.i_bChangeTime_Second := ist_HWIn[34];
st_BdtronicIF.In.i_bChangeTime_Reserve := ist_HWIn[35];
st_BdtronicIF.In.i_bPart_Barcode[0] := ist_HWIn[36];
st_BdtronicIF.In.i_bPart_Barcode[1] := ist_HWIn[37];
st_BdtronicIF.In.i_bPart_Barcode[2] := ist_HWIn[38];
st_BdtronicIF.In.i_bPart_Barcode[3] := ist_HWIn[39];
st_BdtronicIF.In.i_bPart_Barcode[4] := ist_HWIn[40];
st_BdtronicIF.In.i_bPart_Barcode[5] := ist_HWIn[41];
st_BdtronicIF.In.i_bPart_Barcode[6] := ist_HWIn[42];
st_BdtronicIF.In.i_bPart_Barcode[7] := ist_HWIn[43];
st_BdtronicIF.In.i_bProcess_OK := ist_HWIn[44].0;
st_BdtronicIF.In.i_bProcess_NOK := ist_HWIn[44].1;
st_BdtronicIF.In.i_bRes_by44b2 := ist_HWIn[44].2;
st_BdtronicIF.In.i_bRes_by44b3 := ist_HWIn[44].3;
st_BdtronicIF.In.i_bRes_by44b4 := ist_HWIn[44].4;
st_BdtronicIF.In.i_bRes_by44b5 := ist_HWIn[44].5;
st_BdtronicIF.In.i_bRes_by44b6 := ist_HWIn[44].6;
st_BdtronicIF.In.i_bRes_by44b7 := ist_HWIn[44].7;
st_BdtronicIF.In.i_bProcess_Data := ist_HWIn[45];
tProcess1[1]:= ist_HWIn[46];
tProcess1[2]:= ist_HWIn[47];
tProcess1[3]:= ist_HWIn[48];
tProcess1[4]:= ist_HWIn[49];
tProcess2[1]:= ist_HWIn[50];
tProcess2[2]:= ist_HWIn[51];
tProcess2[3]:= ist_HWIn[52];
tProcess2[4]:= ist_HWIn[53];
tProcess3[1]:= ist_HWIn[54];
tProcess3[2]:= ist_HWIn[55];
tProcess3[3]:= ist_HWIn[56];
tProcess3[4]:= ist_HWIn[57];
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irProcessData_Value),srcAddr:=ADR( tProcess1[1]),n:= SIZEOF(st_BdtronicIF.In.irProcessData_Value)) ;
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irProcessData_UpperValue),srcAddr:=ADR( tProcess2[1]),n:= SIZEOF(st_BdtronicIF.In.irProcessData_UpperValue)) ;
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irProcessData_LowerValue),srcAddr:=ADR( tProcess3[1]),n:= SIZEOF(st_BdtronicIF.In.irProcessData_LowerValue)) ;
tPotLife_Set[1]:= ist_HWIn[58];
tPotLife_Set[2]:= ist_HWIn[59];
tPotLife_Set[3]:= ist_HWIn[60];
tPotLife_Set[4]:= ist_HWIn[61];
tPotLife_Current[1]:= ist_HWIn[62];
tPotLife_Current[2]:= ist_HWIn[63];
tPotLife_Current[3]:= ist_HWIn[64];
tPotLife_Current[4]:= ist_HWIn[65];
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irPotLife_SetValue),srcAddr:=ADR(tPotLife_Set[1]),n:= SIZEOF(st_BdtronicIF.In.irPotLife_SetValue)) ;
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irPotLife_ActValue),srcAddr:=ADR(tPotLife_Current[1]),n:= SIZEOF(st_BdtronicIF.In.irPotLife_ActValue)) ;
st_BdtronicIF.In.i_bHandshake_Material := ist_HWIn[66].0;
st_BdtronicIF.In.i_bLifeBit_Material := ist_HWIn[66].1;
st_BdtronicIF.In.i_bRes_by66b2 := ist_HWIn[66].2;
st_BdtronicIF.In.i_bRes_by66b3 := ist_HWIn[66].3;
st_BdtronicIF.In.i_bRes_by66b4 := ist_HWIn[66].4;
st_BdtronicIF.In.i_bRes_by66b5 := ist_HWIn[66].5;
st_BdtronicIF.In.i_bRes_by66b6 := ist_HWIn[66].6;
st_BdtronicIF.In.i_bRes_by66b7 := ist_HWIn[66].7;
st_BdtronicIF.In.i_bMode_Material := ist_HWIn[67];
st_BdtronicIF.In.i_bMaterial_OK := ist_HWIn[68].0;
st_BdtronicIF.In.i_bRes_by68b1 := ist_HWIn[68].1;
st_BdtronicIF.In.i_bRes_by68b2 := ist_HWIn[68].2;
st_BdtronicIF.In.i_bRes_by68b3 := ist_HWIn[68].3;
st_BdtronicIF.In.i_bRes_by68b4 := ist_HWIn[68].4;
st_BdtronicIF.In.i_bRes_by68b5 := ist_HWIn[68].5;
st_BdtronicIF.In.i_bRes_by68b6 := ist_HWIn[68].6;
st_BdtronicIF.In.i_bRes_by68b7 := ist_HWIn[68].7;
st_BdtronicIF.In.i_bCurrent_Level := ist_HWIn[69];
st_BdtronicIF.In.i_wTimeYear_Material := MEM.PackBytesToWord(byHighByte:=ist_HWIn[71] , byLowByte:=ist_HWIn[70] );
st_BdtronicIF.In.i_bTimeMonth_Material := ist_HWIn[72];
st_BdtronicIF.In.i_bTimeDay_Material := ist_HWIn[73];
st_BdtronicIF.In.i_bTimeHour_Material := ist_HWIn[74];
st_BdtronicIF.In.i_bTimeMinute_Material := ist_HWIn[75];
st_BdtronicIF.In.i_bTimeSecond_Material := ist_HWIn[76];
st_BdtronicIF.In.i_bTime_Reserve_Dispense := ist_HWIn[77];
st_BdtronicIF.In.i_Barcode_Selection := ist_HWIn[78];
st_BdtronicIF.In.i_bBarCode_Trsfing := ist_HWIn[79].0;
st_BdtronicIF.In.i_bBarCode_Trsf_Completed := ist_HWIn[79].1;
st_BdtronicIF.In.i_bRes_by79b2 := ist_HWIn[79].2;
st_BdtronicIF.In.i_bRes_by79b3 := ist_HWIn[79].3;
st_BdtronicIF.In.i_bRes_by79b4 := ist_HWIn[79].4;
st_BdtronicIF.In.i_bRes_by79b5 := ist_HWIn[79].5;
st_BdtronicIF.In.i_bRes_by79b6 := ist_HWIn[79].6;
st_BdtronicIF.In.i_bRes_by79b7 := ist_HWIn[79].7;
st_BdtronicIF.In.i_bBarcode[0] := ist_HWIn[80];
st_BdtronicIF.In.i_bBarcode[1] := ist_HWIn[81];
st_BdtronicIF.In.i_bBarcode[2] := ist_HWIn[82];
st_BdtronicIF.In.i_bBarcode[3] := ist_HWIn[83];
st_BdtronicIF.In.i_bBarcode[4] := ist_HWIn[84];
st_BdtronicIF.In.i_bBarcode[5] := ist_HWIn[85];
st_BdtronicIF.In.i_bBarcode[6] := ist_HWIn[86];
st_BdtronicIF.In.i_bBarcode[7] := ist_HWIn[87];
tPailA_Level[1]:= ist_HWIn[88];
tPailA_Level[2]:= ist_HWIn[89];
tPailA_Level[3]:= ist_HWIn[90];
tPailA_Level[4]:= ist_HWIn[91];
tPailB_Level[1]:= ist_HWIn[92];
tPailB_Level[2]:= ist_HWIn[93];
tPailB_Level[3]:= ist_HWIn[94];
tPailB_Level[4]:= ist_HWIn[95];
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irPailA_Filllevel),srcAddr:=ADR(tPailA_Level[1]),n:= SIZEOF(st_BdtronicIF.In.irPailA_Filllevel)) ;
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irPailB_Filllevel),srcAddr:=ADR(tPailB_Level[1]),n:= SIZEOF(st_BdtronicIF.In.irPailB_Filllevel)) ;
tPumpA_Pressure[1]:= ist_HWIn[96];
tPumpA_Pressure[2]:= ist_HWIn[97];
tPumpA_Pressure[3]:= ist_HWIn[98];
tPumpA_Pressure[4]:= ist_HWIn[99];
tPumpB_Pressure[1]:= ist_HWIn[100];
tPumpB_Pressure[2]:= ist_HWIn[101];
tPumpB_Pressure[3]:= ist_HWIn[102];
tPumpB_Pressure[4]:= ist_HWIn[103];
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irPumpA_DispensePressure),srcAddr:=ADR(tPumpA_Pressure[1]),n:= SIZEOF(st_BdtronicIF.In.irPumpA_DispensePressure)) ;
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irPumpB_DispensePressure),srcAddr:=ADR(tPumpB_Pressure[1]),n:= SIZEOF(st_BdtronicIF.In.irPumpB_DispensePressure)) ;
tPumpAOutlet_Pressure[1]:= ist_HWIn[104];
tPumpAOutlet_Pressure[2]:= ist_HWIn[105];
tPumpAOutlet_Pressure[3]:= ist_HWIn[106];
tPumpAOutlet_Pressure[4]:= ist_HWIn[107];
tPumpBOutlet_Pressure[1]:= ist_HWIn[108];
tPumpBOutlet_Pressure[2]:= ist_HWIn[109];
tPumpBOutlet_Pressure[3]:= ist_HWIn[110];
tPumpBOutlet_Pressure[4]:= ist_HWIn[111];
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irPumpA_OutletPressure ),srcAddr:=ADR(tPumpAOutlet_Pressure[1]),n:= SIZEOF(st_BdtronicIF.In.irPumpA_OutletPressure )) ;
MEMCPY(destAddr:=ADR(st_BdtronicIF.In.irPumpB_OutletPressure ),srcAddr:=ADR(tPumpBOutlet_Pressure[1]),n:= SIZEOF(st_BdtronicIF.In.irPumpB_OutletPressure )) ;8.2 输出变量映射程序
ost_HWOut[0].0 := st_BdtronicIF.Out.q_bHandshake_Active;
ost_HWOut[0].1 := st_BdtronicIF.Out.q_bLifeBit_Dispese;
ost_HWOut[0].2 := FALSE;
ost_HWOut[0].3 := FALSE;
ost_HWOut[0].4 := FALSE;
ost_HWOut[0].5 := FALSE;
ost_HWOut[0].6 := FALSE;
ost_HWOut[0].7 := FALSE;
ost_HWOut[1] := st_BdtronicIF.Out.q_bMode_Dispense;
ost_HWOut[2] := st_BdtronicIF.Out.q_bRecipeNo;
ost_HWOut[3].0 := st_BdtronicIF.Out.q_bStart;
ost_HWOut[3].1 := st_BdtronicIF.Out.q_bFill;
ost_HWOut[3].2 := st_BdtronicIF.Out.q_bClean;
ost_HWOut[3].3 := FALSE;
ost_HWOut[3].4 := FALSE;
ost_HWOut[3].5 := FALSE;
ost_HWOut[3].6 := FALSE;
ost_HWOut[3].7 := FALSE;
ost_HWOut[4] := st_BdtronicIF.Out.q_bActual_Pos;
ost_HWOut[5].0 := st_BdtronicIF.Out.q_bPartID_Received;
ost_HWOut[5].1 := FALSE;
ost_HWOut[5].2 := FALSE;
ost_HWOut[5].3 := FALSE;
ost_HWOut[5].4 := FALSE;
ost_HWOut[5].5 := FALSE;
ost_HWOut[5].6 := FALSE;
ost_HWOut[5].7 := FALSE;
ost_HWOut[6] := st_BdtronicIF.Out.q_bPartID_OK;
ost_HWOut[7] := st_BdtronicIF.Out.q_bProcess_Data;
ost_HWOut[8] := st_BdtronicIF.Out.q_bMode_Material;
ost_HWOut[9] := st_BdtronicIF.Out.q_Barcode_Selection;
ost_HWOut[10].0 := st_BdtronicIF.Out.q_bBarcode_Received;
ost_HWOut[10].1 := FALSE;
ost_HWOut[10].2 := FALSE;
ost_HWOut[10].3 := FALSE;
ost_HWOut[10].4 := FALSE;
ost_HWOut[10].5 := FALSE;
ost_HWOut[10].6 := FALSE;
ost_HWOut[10].7 := FALSE;
ost_HWOut[11].0 := st_BdtronicIF.Out.q_bLifeBit_Material;
ost_HWOut[11].1 := FALSE;
ost_HWOut[11].2 := FALSE;
ost_HWOut[11].3 := FALSE;
ost_HWOut[11].4 := FALSE;
ost_HWOut[11].5 := FALSE;
ost_HWOut[11].6 := FALSE;
ost_HWOut[11].7 := FALSE;8.3
© 版权声明
文章版权归作者所有，未经允许请勿转载。如内容涉嫌侵权，请在本页底部进入<联系我们>进行举报投诉!
THE END
暂无评论内容
